Photovoltaic Module Rail Bonding with Acrylic Foam Tapes

This paper received the Pressure Sensitive Tape Council's 2014 Carl A. Dahlquist Award for Best Technical Paper.

August 1, 2014
/ Print / Reprints /
ShareMore
/ Text Size+
Trans

To justify the cost of building viable solar farms, photovoltaic (PV) module installations must offer long-term performance. Thus, the durable mounting of PV panels is an important application for the solar industry. Current options are limited, however, and each panel mounting method has an impact on cost and performance. This paper examines the mounting of rigid modules, in particular two types of rigid modules: glass/glass modules and glass/backsheet modules.



Relevant Forces

Key forces acting on the module mounting systems must be considered when designing attachment systems. These forces can be categorized as either dynamic or static. Dynamic forces refer to loads or displacements that change with time, such as wind gusts, handling during installation, and movement due to thermal expansion mismatches between non-similar materials. High wind gusts and handling loads typically last only a few seconds. Three-second wind gusts are commonly used to calculate wind loads and can be used to predict the performance of an adhesive system in an application.1,2

Thermal expansion and contraction must also be considered when bonding non-similar materials with different thermal expansion properties. This difference in thermal expansion can cause cyclic displacements, which occur at various rates and cause cyclic loads on the adhesive system. The time frames for cyclic displacement can vary from day to day—e.g., from the hottest part of the day to the coldest part of the day—or season to season, e.g., from the hottest summer to the coldest winter days.

Static loads, such as gravitational force acting upon the module, do not change over time. In some geographical locations, loads caused by the weight of snow must be considered during the design of a system. Snow load is viewed as a static load at cold temperatures (e.g., 0°C).



Methods to Evaluate Performance

UL1703, IEC61646 and IEC61215 standards contain mechanical load testing used by the solar industry to characterize the performance of the full module attachment design.3,4,5 IEC61646 specifies applying 2400 Pa of pressure to the front and the back of the panel to simulate a wind gust. The test is run three times, with each load applied for one hour. If the module is to be qualified for handling heavy snow or ice loads, pressure is applied to the front side at 5400 Pa during the last cycle. These tests are all performed at ambient conditions. This test can be misleading, however, because high wind gusts typically last only seconds and snow loads occur at cooler temperatures for longer durations. Speed and temperature are two key variables that can significantly impact an adhesive’s performance, as can be seen from the examples presented in this paper.

One method that can be used to quantify dynamic forces is overlap shear testing, which is described in ASTM D 1002.6 This method is typically performed at a constant extension rate and thus is not representative of the relevant forces in many applications. This paper suggests using a constant force to rupture (CFTR) method to characterize the time until rupture failure under various constant forces. The CFTR method has been presented in other papers to help quantify design characteristics of adhesives1,8,9 to estimate real world performance. The CFTR method can be done in an overlap shear (OLS) or a pluck (sometimes referred to as tensile) mode. The OLS methods use similar test protocol as described in ASTM D 3654.7 The OLS and pluck CFTR methods apply a constant force, which is believed to accurately simulate the constant forces (e.g., gravity) acting on the module. The data can be used to predict both long-term (e.g., years) and short term (e.g., 3-second wind gusts) force failures. The difficulty with the CFTR method is that it takes a long time to collect the data required to project long-term failures; in addition, the prediction of performance after many years requires extrapolation, which can add uncertainty to the results. However, good (e.g, statistically fitting) data can be used to estimate long-term static performance. The work in this paper evaluates performance over longer times and under more severe conditions than the other referenced papers. The conditions evaluated in this paper include severe conditions that are relevant to the solar industry because they are currently used in solar standards.



Glass/Backsheet Modules

Glass/backsheet rigid modules are commonly used for crystalline silicon PV panels. The dominant mounting method for glass/backsheet modules uses metal frames that surround the entire perimeter of the module. These frames typically have a U-channel, where the panel edges are inserted and secured by either a liquid adhesive or a tape. An adhesive system is required in most designs to pass UL and IEC mechanical load testing. Further discussion of adhesive tapes, requirements and related adhesive characterization for frame bonding can be found in other articles.10 Frames increase the cost of the module due to the large amount of metal used around the perimeter of the PV panel. They also add to the cost of installation because each module needs to be grounded.

Clips are another option for mounting PV modules. Clips contact small areas around the edge of the module, and are subjected to the stress of full wind or snow loads. Clip design is very important, as module failure can occur in these areas if the clipped area is unable to withstand the applied loads. Multiple clips around the edge can be used to minimize the forces at each clip area. Thicker glass can also help reduce the potential for failure, but may be cost prohibitive.

A third option for backsheet modules is to use adhesive bonded rails on the back side of the module. The adhesive can be a foam tape, liquid or combination of the two. This option presents a concern, however; forces exerted on the module’s internal components can cause internal delamination of the encapsulant or backsheet. One strategy for addressing delamination relates to adhesive properties. Properly designed viscoelastic adhesives can help protect the bond interfaces through stress relaxation, distributing the force more evenly than elastic or rigid adhesives. A second strategy for minimizing the likelihood of delamination is to reduce stress (force per area) by applying the adhesive to a larger surface area.



Glass/Glass Modules

Glass/glass rigid modules are the dominant type of module in the thin film PV industry. Clips are more common with glass/glass modules than glass/backsheet modules. The extra thickness of the glass helps withstand the localized forces associated with clips. While the market is trending toward larger modules and thinner glass in an effort to reduce costs, such configurations are more at risk of damage from the clips. Frames can be used with glass/glass modules, but are less common than clips due to the associated costs with completely framed modules.

Rail attachment is a cost-effective and attractive option for glass/glass modules. A correctly designed rail attachment system can withstand the relevant forces; the advantages become more pronounced when moving to larger modules and/or thinner glass. Rails can be positioned on the back of the module to stiffen and support the module to resist wind and snow loads. 3M™ acrylic foam tapes have been used in solar module rail attachment for over five years, and in industrial and automotive exterior applications since the early 1980s. Figure 1 shows the use of rails with 3M acrylic foam tape on large (2.2 x 2.6 m) a-Si thin film modules.



Modeling of Various Attachment Methods

Finite element modeling has been performed by the 3M Corporate Research Labs to simulate the force distribution and displacement of three common attachment methods: clips, rails, and framed perimeter. The example in Figure 2 is a representative comparison of the different systems; the modeling of a specific system may differ from what is presented here, due to variations in design parameters.

The modeling shown in this example used the following parameters:

•   3.2 mm thick glass

•  Module dimensions of 1.2 x 0.6 m

•  5400 Pa load to simulate snow load force

•  Linear elastic material characteristics

•  Framed module with a 12 mm deep U-channel around the entire module

•  Clipped module with four 50 by 12 mm U-channel clips

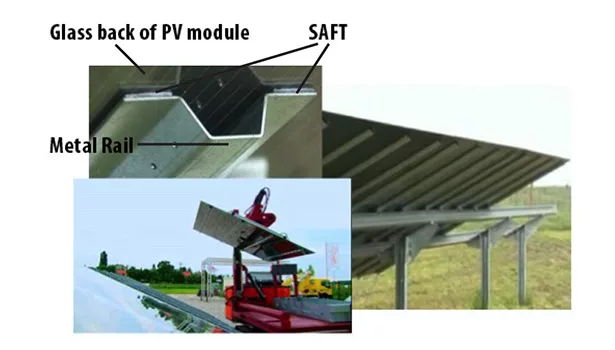

•  Two hat-type rails (as shown in Figure 1): 1.1 m aluminum with two 25 mm flanges

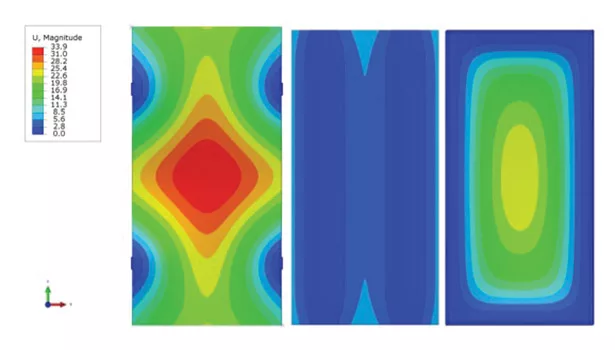

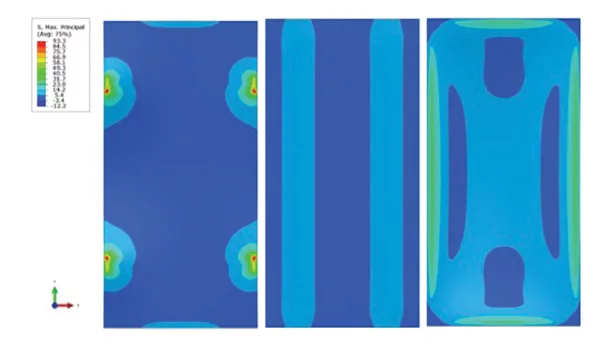

Together, Figure 2 and Figure 3 show that the clip system yields the highest stress as well as the largest displacement. Table 1 lists the peak force and maximum displacement associated with the three methods. The clip system shows 7.5 times more force and 4.1 times more displacement than the rail system.



Adhesive Systems for Rail Bonding

3M manufactures many types of tapes and liquid adhesives that can be used for rail bonding, either alone or in combination. 3M solar acrylic foam tapes (SAFT) offer these advantages over liquids:

•  Immediate handling strength

•  Consistent bond quality due to ease of application in the bonding process

•  Tolerance to mechanical stresses due to its viscoelastic characteristics

•  Weather resistant, long-term durability with a proven track record in outdoor applications

Because of these benefits, 3M has focused recent work on acrylic foam tapes for rail bonding. Various 3M tapes have been used successfully in rail bonding solar applications, including SAFT 2204, 2304, 3230 and 4155. The acrylic foam tape studied in this paper, SAFT 2204, has been adopted by solar panel manufactures and has been certified to UL1703 and IEC61646.11 The selection of the best tape depends on the requirements of the application; each tape has specific properties, and the application should be discussed with the supplier to identify the appropriate tapes for consideration.

Not all foam tapes use acrylic chemistry in the middle of the tape construction. For example, some polyethylene foam tapes use acrylic adhesives on the surface and a polyethylene foam in the middle. These are common in the market and suitable for other applications, but are not considered appropriate for rail bonding applications for several reasons. Polyethylene foam tapes are less durable than acrylic tapes, with lower temperature resistance and reduced strength in dynamic situations. They also lack sufficient viscoelastic properties to protect the bond interfaces.

When considering adhesives, it is important to understand the dynamic rate and temperature they will experience, as these factors will affect adhesive strength. Analyzing how an adhesive system will handle static and various dynamic stresses can indicate performance under the types of loads encountered in rail bonding applications.

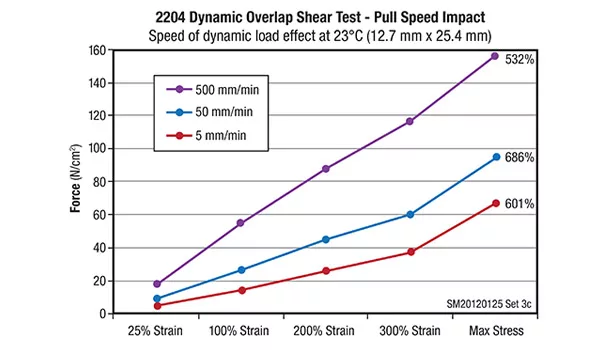

Fast dynamic rates are important for solar applications, as they are observed both during wind gusts and handling during installation. Figure 4 demonstrates the effect of rate on an acrylic foam tape by using various pull speeds in a standard dynamic overlap shear test. The configuration for this test is shown in Figure 5. The strain at maximum stress is listed to the right of the maximum stress data points in Figure 4 and Figure 6. As the data show, the maximum stress capability more than doubles when the rate is increased from 5 mm/min to 500 mm/min without significantly impacting the strain at maximum stress. The stress capabilities of other adhesives, such as silicones, are not affected so dramatically by rate.

Cold temperature performance is a critical factor when the system will be exposed to snow loads. Failures in the field due to snow loads with framed glass/backsheet modules have been reported.12 Viscoelastic adhesives become stiffer at lower temperatures, helping resist movement under high snow loads. Figure 6 shows the effect of temperature on the stress handling capability of an acrylic foam tape using a dynamic overlap shear test. Stress handling capability of acrylic foam tape increases significantly at cold temperatures but still retains high strain capability, e.g., 323% at -20°C. Other adhesives, such as silicones, do not show such a dramatic increase in strength at colder temperatures.



Predicting Adhesive Performance Characteristics

Various studies have been done to predict performance of 3M VHB tape and 3M acrylic foam tapes.1,8,9,13 These studies discuss long-term performance characteristics, including UV durability. The data presented show that 3M acrylic foam tapes can be used successfully in long-term outdoor applications.

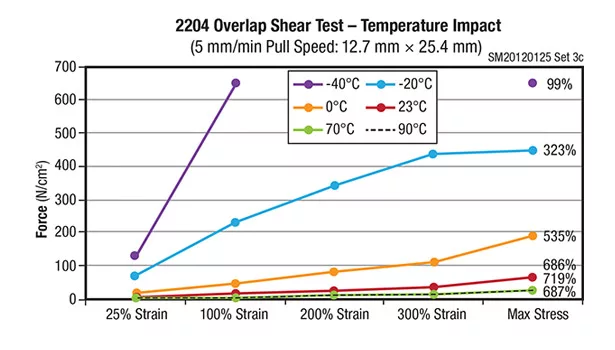

This paper presents new data using the CFTR method to evaluate the performance of solar acrylic foam tape 2204 for rail bonding applications under conditions relevant to the solar industry. All data presented showed cohesive failure of the adhesive, also referred to as adhesive rupture, an example of which is shown in Figure 5. Surface adhesion, while an important consideration, lies outside the scope of this paper, as it depends on many variables: the substrate type, surface preparation and the application of the adhesive.



Predicting Long Term Gravitational Performance

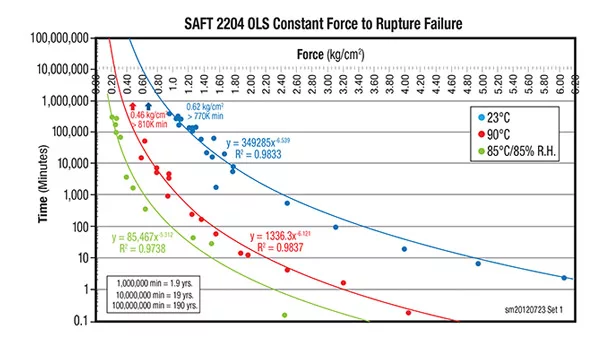

The CFTR OLS method was used to estimate time to failure under various constant loads, as shown in Figure 7. This data can be used to predict long-term gravitational performance.

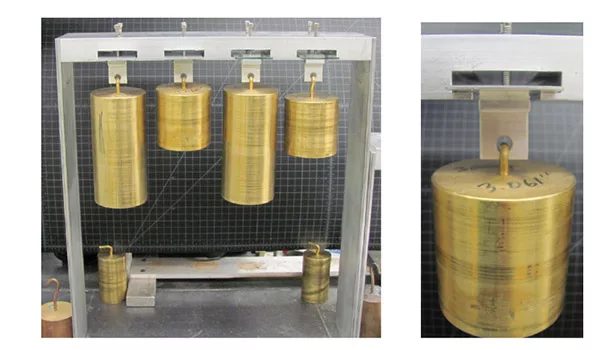

The testing method used was similar to ASTM D 3654.7 For these tests, two thick anodized aluminum panels were bonded with acrylic foam tape in order to characterize the bulk performance of the adhesive. Various weights and adhesive areas were used to generate the data shown in Figure 7. Weights ranged from 500 g to 6 kg, and adhesive areas ranged from 0.32 to 6.5 cm2. Automated timers were used to record failure times. Figure 8 shows the sample construction and how the material was tested. The data were plotted and a regression formula was determined. The fit of the formula has an R2 value of greater than 0.9, which means the data fit the formula well. These data can be used to predict performance under long-term static conditions (e.g., gravitational forces on the panel). They can also be used to project short-term load capabilities. Conditions evaluated were 23°C, 90°C, and 85°C/85% R.H., commonly referred to as damp heat (DH). The solar industry typically uses DH conditions to evaluate materials; however, the extreme amount of moisture present during DH can plasticize materials and cause failures that would not occur in the real world. The use of the DH data to predict real world performance does not give an accurate representation of real world performance. Temperatures on the module will be hotter than the environment, due to the heat generated by the PV panel. 90°C can be used as a conservative point for designing the system; it is believed to be above the temperature the rail bonding system will experience, but is closer to real world conditions than DH. The longest time interval evaluated as of the date this report was written was approximately 1.5 years (810,000 minutes). The small arrows in Figure 7 for 90°C and 23°C represent the highest forces that have not failed when this report was written.



Overlap Shear Rupture Failure Discussion

In the following equations from Figure 7, y refers to the time in minutes of the rupture failure under an OLS load x in kg/cm2. Equation 1, reflecting the 23°C data, suggests that SAFT 2204 will hold 0.56 kg/cm2 for 30 years before rupture of the adhesive. Equation 2 suggests that, at a continuous 90°C temperature, rupture of SAFT 2204 would occur at 30 years with a constant static gravitational force of 0.22 kg/cm2.



OLS CFTR (23C):              y = 349285x-6.539     (1)

OLS CFTR (90C):              y = 1336.3x-6.121      (2)



The projections from these equations do not include any safety factors and are based on extrapolation of the data beyond what was collected. Evaluation of the full module should be completed by the manufacturer to confirm performance of the specific attachment system. Panel manufacturers may be able to use the data presented here, in addition to appropriate safety factors, in determining a starting point for full module evaluations.



Overlap Shear Displacement Under Load Discussion

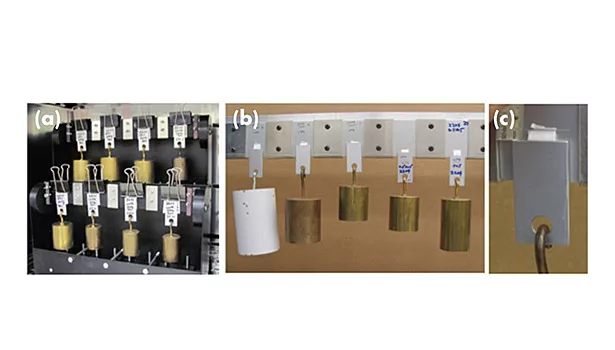

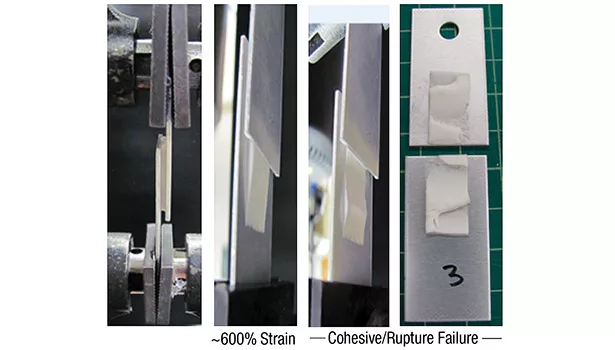

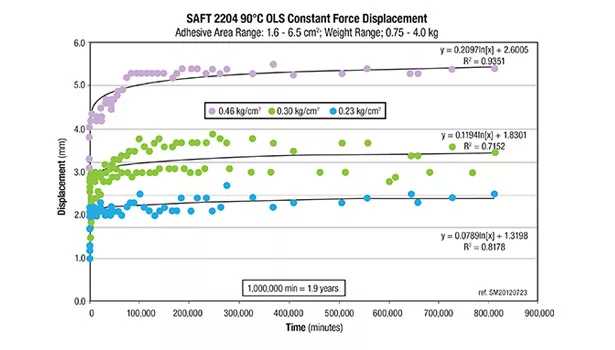

The method (discussed in section 7.1, shown in Figure 8) included a manual measurement of displacement. Figure 9 shows displacement data of an acrylic foam tape at 90°C. The curve of the acrylic foam tape flattens out over time due to the crosslinked polymer matrix of the viscoelastic acrylic foam tape. This behavior is expected when constant stress loads are below values that would lead to rupture failure.



Predicting Wind Gust Performance

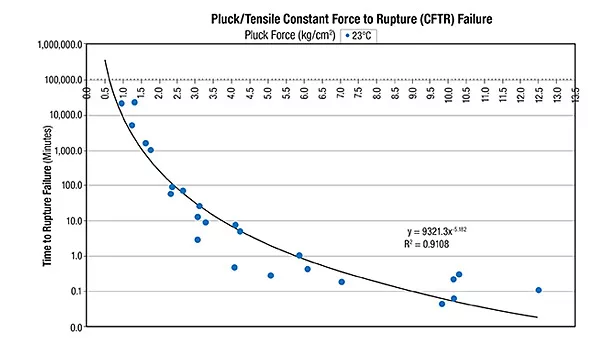

The CFTR pluck method was used to estimate time to failure under various constant loads (see Figure 10). Use of Equation 3, which is from Figure 11, can be used to predict wind gust (e.g., 3-second loads) and IEC mechanical load performance (e.g., 1-hour loads). Wind gust are much shorter than the IEC 1 hour time frame and the use of 1-hour loads is not appropriate to simulate high wind gusts. Three-second wind gusts are commonly used to calculate wind loads in building codes and can be used to predict the performance of an adhesive system in an application.1,2 The pluck CFTR method consists of applying a constant force, as shown in Figure 10. Various weights and adhesive areas were used to generate these data. Weight ranged from 3 to 6 kilograms and adhesive areas ranged from 0.4 cm2 to 6.3 cm2. During high winds, the temperature of the module surface will not deviate significantly from temperatures above ambient conditions because the wind flow will cool the module. Therefore, the 23°C data can be used to estimate wind performance.



Pluck/Tension Rupture Failure Discussion

Using Equation 3, the estimated failure for a 3-second load (representing a wind gust) would be at 10.4 kg/cm2 of tape. The failure for a 1-hour load (representing the IEC mechanical load requirements) would be at 2.6 kg/cm2 of tape.



Pluck CFTR (23C):             y = 9321.3x-5.182      (3)



The projections from these equations do not include any safety factors. Evaluation of the full module should be completed by the manufacturer to confirm performance of the specific attachment system. Panel manufacturers may be able to use the data presented here, in addition to appropriate safety factors, in determining a starting point for full module evaluations.



Case Study Analysis

This section presents a typical analysis done to help PV panel manufacturers and installers estimate the amount of SAFT 2204 to be used. The analysis considers four factors: thermal expansion and contraction, long-term static gravitational forces, dynamic wind load forces, and IEC mechanical load forces. If the adhesive can safely tolerate the differential thermal expansion and contraction of the two substrates, the forces related to the long-term gravitational load and short-term wind gusts must be considered. The IEC mechanical load forces are also considered because this is currently required by the solar industry. The total tape area required will be determined by using CFTR calculations. Whichever calculation requires the most adhesive will determine the minimum amount of tape. General engineering principals include safety factors when calculating adhesive bond area to avoid stressing the adhesive at or near the point of failure. The appropriate safety factor is determined by the system designer. The following assumptions are used in this analysis for demonstration purposes:

•  1 x 1.5 m panel (module) dimensions with a weight of 20 kg

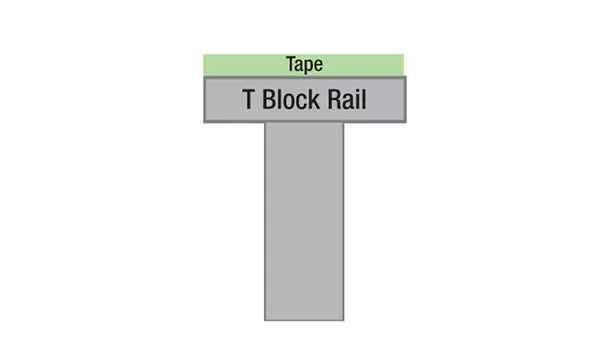

•  Three T-block rails (see Figure 12, p. 30): 100 cm per rail; 300 cm total tape length

•  SAFT 2204 adhesive design criteria:

  • Long-term gravitational load: OLS data from Figure 7 projects rupture failure after 30 years at continuous 90°C would occur at 0.2kg/cm2. Using a 5x safety factor, the design factor become 0.04 kg/cm2.
  • Short-term wind gusts: Pluck data from Figure 11 projects 3 second rupture failures would occur at 10.4 kg/cm2. Using a 5x safety factor, the design factor becomes 2.1 kg/cm2.
  • IEC Mechanical Wind Load: Pluck data from Figure 11 projects a 1 hour rupture failure would occur at 2.6 kg/cm2. The IEC load of 2400 Pa includes a 3 x safety factor for a 130 km/hr wind with a dwell of 1 hr. For this analysis, 1.3 kg/cm2 will be used as the design factor for the IEC mechanical load test because IEC 2400 Pa force already includes a safety factor of 3x.



Thermal Expansion

A general guideline is that 3M acrylic foam tapes can compensate for three times the thickness of the tape in shear strain for thermal expansion mismatches between bonded substrates.14 The calculation to determine the amount of expansion and contraction should be based on the difference between the temperature at the time of bonding and the greatest temperature differential during real-world exposure. Table 2 includes inputs and calculations showing the maximum thermal expansion difference for a 1 m rail from -40°C to 90°C, assuming that the application temperature is 25°C. The differentials of 25°C to -40°C and 90°C to 25°C are both 65°C. The calculation shows a differential expansion of 0.86 mm. As SAFT 2204 is 2 mm thick, this value of 0.86 mm falls within the guideline that is used for the acrylic foam tapes.



Long-Term OLS Gravitational Forces Acting on the Panel

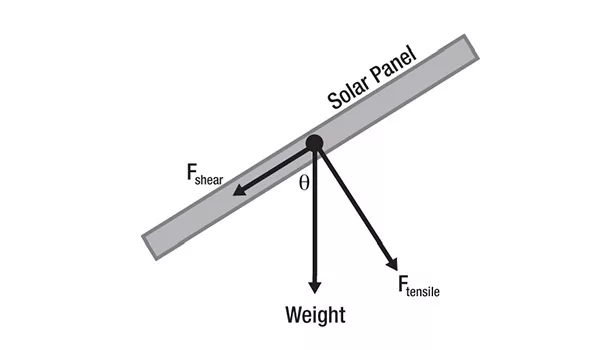

Solar panels are mounted at an angle with the rails on the back side of the module closest to the ground, as seen in Figure 1 and Figure 13. The adhesive area required to withstand long-term static shear forces due to gravity can be calculated, as shown in Equation 4. These calculations determine a tape width of 0.83 cm for the T-block rail example using a long term gravitation design factor of 0.04 kg/cm2.



Fshear = W·cos u = 20 kg · cos (60°) = 10 kg   (4)

10 kg shear force/0.04 kg/cm2 static design stress =
250 cm2 adhesive area

250 cm2 adhesive area/300 cm total rail length =
0. 83 cm of tape width



Wind Loads

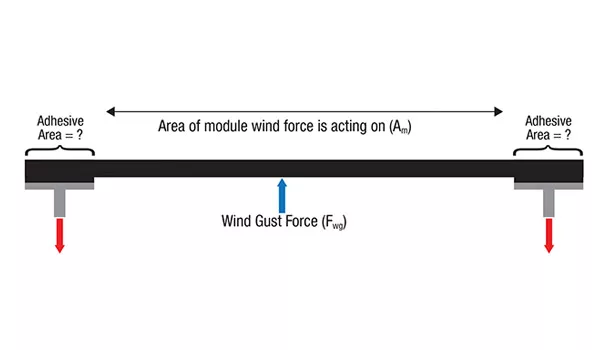

The Emswiler formula (Equation 5) is a common method of estimating forces from wind. “P” refers to pressure in lbs/ft2. “V” refers to velocity of the wind in MPH (miles/hour). Using Equation 5 with the appropriate conversions, a 100 MPH would exert a force of 0.012 kg/cm2 on the module.



Emswiler Formula:              P = 0.002496V2     (5)



For this analysis, we will assume the wind on the module panel will be perpendicular to the module surface, as represented in Figure 14, but in reality the modules are at an angle which may decrease the actual force seen by the PV module surface. The maximum wind force on the module is due to the wind gust force (Fwg) multiplied by the area of the module (Am) that the wind is acting upon. Based on the calculation shown in Equation 6, the tape area should be 87 cm2 or more. The amount of tape to be used should be based on the static gravitational force analysis, as it requires a larger tape area than the wind load analysis.



Fwg · Am = 0.012 kg/cm2 wind gust force · 100 cm width · 150 cm length = 183 kg force       (6)



183 kg wind force/2.1 kg/cm2 dynamic design stress =
87 cm2 adhesive area



IEC/UL Mechanical Loads

Even though the IEC mechanical load test is not a good predictor of wind performance, due to the 1-hour hold time vs. a 3-second wind gust, it is nevertheless a standard method used by the solar PV industry to determine if the attachment method is acceptable; therefore an analysis has been included. The 5400 Pa snow load test is applied to the front side of the panel and the rails are on the back of the panel. The adhesive will be in compression for the snow load test; based on experience, this will not cause adhesive failure. The more important issue is the 2400 Pa (0.025 kg/cm2) that is applied to the back side of the panel, putting the adhesive in pluck mode. Using the design factor of 1.3 kg/cm2, per section 8.0, the amount of tape would be 288 cm2 per Equations 7 and 8.



0.025 kg/cm2 1 hr load · 100 cm width · 150 cm length = 375 kg force     (7)

375kg/1.3 kg/cm2 IEC/UL design stress =
288 cm2 adhesive area     (8)

288 cm2 adhesive area/300 cm total rail length =

0.96 cm of tape width



Conclusion

In comparison to clip and frame methods of PV panel attachment, rail attachment offers the advantage of distributing the forces acting on the module more evenly over the panel area. As PV module manufacturers migrate to larger modules and thinner glass, the distribution of the relevant forces acting on the attachment system becomes more critical. 3M solar acrylic foam tapes are proven and accepted adhesives for attaching rails to PV modules and other long-term outdoor applications. They offer benefits including immediate handling strength; consistent bond quality due to ease of application in the bonding process; tolerance to thermal mechanical stresses; protection of bond interfaces through stress relaxation; weather resistant, long-term durability with a proven track record in outdoor industrial applications; and cost effectiveness.


For more information, contact the author at (651) 733-1722 or srmeyer1@mmm.com, or visit www.3m.com.


Acknowledgements

The author would like to acknowledge the help of Dylan Cosgrove, senior research engineer, 3M Corporate Research Lab, for the modeling work that was presented.
