NETZSCH: Rotary Lobe Pump

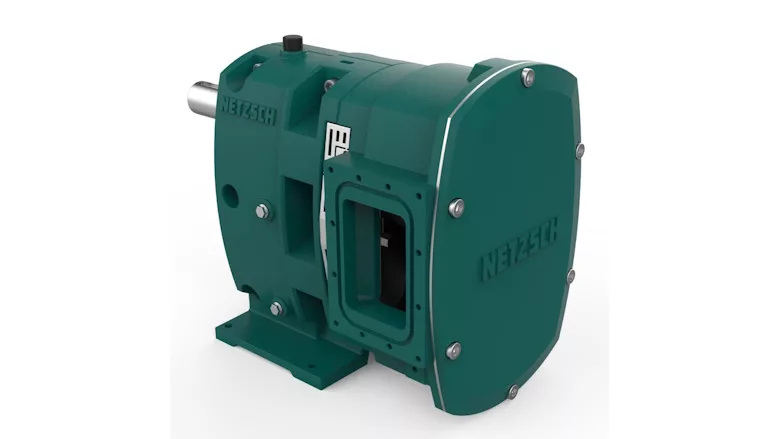

The TORNADO T1 Generation F pump from NETZSCH Pumps USA. Image courtesy of NETZSCH Pumps USA.
TORNADO® T1 Generation F pump from NETZSCH Pumps USA is designed to produce high flow at low to medium pressures in a small compact package. Ideal for various industrial applications, the pump can handle a wide range of viscosities, solids, temperature, abrasion, and corrosive/acidic process fluids and environments.
The pump is versatile for just about any orientation and installation. Its robust design offers longevity, operational flexibility, and dry-run capabilities. It allows the pump to operate and handle many upset process conditions without causing harm to the pump. The pumps are available up to over 4,000 gpm and up to 145 psi.
NETZSCH TORNADO T1 Generation F has a Full Service-in-Place (FSIP ®) process side (wet-end) of the pump. The front pullout design allows for easy access for maintenance and inspection. Opening the front cover allows access to the wear plates, lobes, and seals, making this pump very easy to service. Additionally, there is no need to access the timing gears or bearings as they are protected with the NETZSCH Gearbox Security System (GSS). This desirable feature protects the gearbox from the process side of the pump (wet-end). The GSS is an air gap that exists between the mechanical seal and the lip seal of the timing gearbox that establishes a physical separation between them. Should the mechanical seal leak, no product can get into the pump’s gearbox to contaminate the timing gear oil. The air gap allows for the process fluid to drip away from the shaft and timing gearbox to prevent damage; the process fluid physically cannot pass through the air gap and migrate past the gearbox lip seal. This air gap fully prevents the intermingling of the two fluids resulting in improved long-term operation and allows for the pump to have a lower total cost of ownership. Repairing bearings, lip seals, and timing gears are greatly diminished with the TORNADO T1 Generation F rotary lobe pumps.
The TORNADO T1 pump has been around for over a generation. This new Generation F series is the new, improved T1 design that offers up to 25% more efficiency. NETZSCH reports that it continues to improve the design and develop its capabilities to make it stronger, last longer, and add beneficial features. Some of these upgrades include improved flange sealing, a one-piece housing design, cartridge seal configurations (single, double, flush, quench, etc.), a superior wear plate, and newer materials and coatings that extend operational life. NETZSCH stated that it is the only manufacturer that blends its own rubbers and injection molds the lobes internally, allowing for manufacturing to be more vertically integrated and for better control of the tolerances and process variations which provides the TORNADO T1 Generation F improved efficiency and pressure capacity. In the end, this allows NETZSCH to supply a longer-lasting foundation to your process.
Learn more about NETZSCH Pumps USA at pumps-systems.netzsch.com/en-US.
