CHARLES ROSS & SON CO.: Retention Mixer
CHARLES ROSS & SON CO. has introduced its ROSS Retention Mixer, designed to provide continuous agitation during storage and unloading while maintaining product uniformity, preventing material settling, and improving reaction yields.

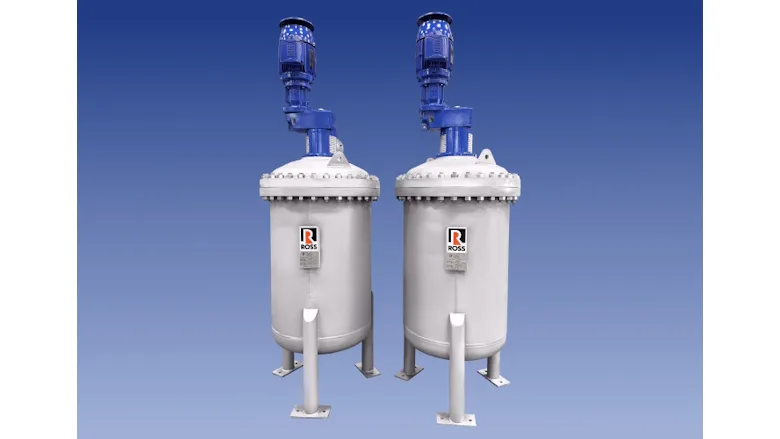

The model shown features a 250-gallon capacity and is rated for operation at pressures up to 200 psi and temperatures up to 300 °F. Constructed of Type 304L stainless steel, the pressure vessel is designed and manufactured to ASME Section VIII, Division 1 standards and is hydrostatically tested before shipment.
Mixing is provided by 15 agitator blades operating at up to 350 rpm and powered by a 15 HP TEFC inverter-duty motor. Fourteen internal baffles promote product movement throughout the vessel, while an angular-contact steady bearing stabilizes the 17-4 PH stainless steel shaft. The shaft is sealed with a dry-running single mechanical seal.
Customization is available and can include nozzles for material additions, ventilation, drainage, and instrumentation. ROSS Retention Mixers are available in capacities up to 5,000 gallons.
Learn more at mixers.com.
