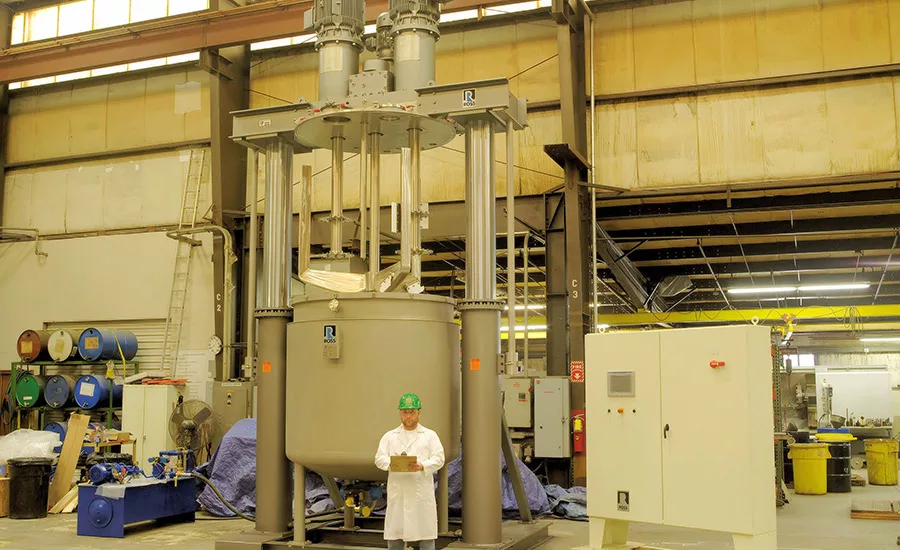

ROSS: Triple-Shaft Mixer
ROSS has introduced a special triple-shaft design specifically suited for hot melts and viscous dispersions. The latest model CDA-800 has a mixing capacity of 500-800 gal and is designed for full vacuum operation (29.5” Hg).
The mixer is reportedly suitable for high heat operation up to 600°F and includes an insulated 50-psig stainless steel dimpled jacket covering the side and bottom of the dished bottom mixing can. In addition to the standard three-wing anchor for bulk flow and heat transfer, the unit shown is outfitted with two reversible high-speed disperser shafts, each featuring two 16-in height-adjustable blades suitable for quick hydration of dry ingredients and agglomerate dispersion. The removable mix vessel sits 24 in above the floor for convenient discharge.
For more information, visit www.mixers.com.
