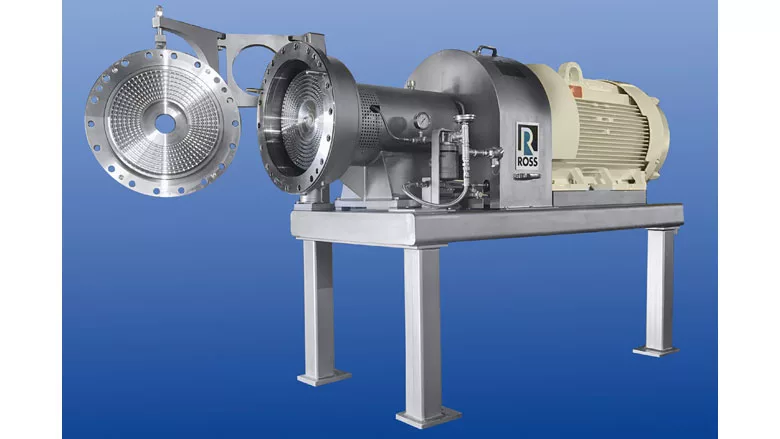

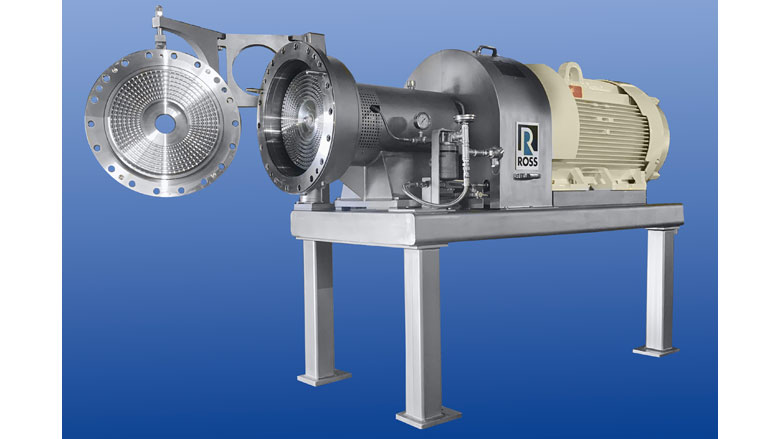

The ROSS Inline Ultra High Shear Sanitary Mixer Model HSM-715XSUHD-250 is designed to deliver exceptional dispersion, emulsification, and homogenization at high throughput. Featuring the patented X-Series rotor/stator in type AL-6XN stainless steel, the combination of high tip-speed and extremely close tolerances between the interlocking channels subjects the product to intense shear in every pass.

Designed for continuous operation the HSM-715XSUHD-250 is driven by a 250 HP washdown duty inverter-duty motor and equipped with heavy-duty tapered roller bearings. This model is CIP compliant, with the back of the mixing chamber relieved to promote thorough cleaning around the seal area. With its ability to produce top-quality dispersions, suspensions and emulsions with uniform size distributions, this mixer is ideal for various industries including chemicals, adhesives, and composites manufacturing.

The HSM-715XSUHD-250 is supplied with a NEMA 12 pre-engineered control panel.

To learn more, visit www.mixers.com.
