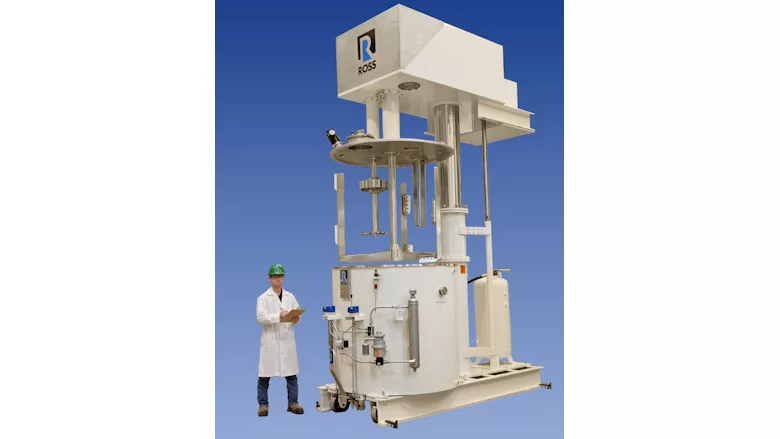

Engineered to handle the most demanding high-viscosity and high-shear applications, the ROSS line of Multi Shaft Mixers is an excellent choice for chemicals, coatings, adhesives, composites, and more. Delivering the mixing efficiency and operational flexibility demanded by a high-volume, high-accuracy production process, the pictured PVM-500-gallon VersaMix is equipped with a heavy-duty 30 HP three-wing anchor agitator and a 75 HP high-speed disperser with 15” blade for rapid powder wet-out and dispersion. The custom configuration includes provisions for a future addition of a third agitator.

The ROSS PVM-500’s jacketed vessels allow for heating/cooling and vacuum operation. In addition, the interchangeable mix cans feature a two-wheel drive hydraulic system for easy movement and precise positioning. The cover includes a thermoprobe, tank light, and several process connections specified by the end user.

An explosion-proof purged operator station rated for Class I, Div 1 environments allows operators to run the mixer in manual mode or recipe-based automated mode. The control system is UL-698A, NFPA-496, and UL508A certified.
