COTRONICS: Pressure-Sensitive Ceramic Tape
Cotronics’ Ultra-Temp 390PS pressure-sensitive, ceramic tape wraps around pipes and equipment for thermal and electrical insulation to 2300 ºF. Thermally efficient ceramic tape provides excellent adhesion to metals, ceramic, and glass. Easy to use, the ceramic tape eliminates the time spent twisting, slipping, and unwrapping that occurs with standard tapes.
Secure pressure sensitive adhesive backing (available in two thicknesses) simplifies placement and installation. To use, just press and stick. The tape is available is four easy-to-use roll widths. Mechanical fastening or high-temperature adhesive is required for applications above 400 ºF. The combined ceramic tape and pressure-sensitive adhesive make it the ideal material for any high-temperature application requiring up to 2300 ºF continuous service with excellent thermal and electrical resistance.
Ceramic tape is made from asbestos-free, aluminum-oxide-based, high-purity, refractory fibers. These tapes have low specific heat and low thermal conductivity. They are resistant to thermal shock and offer electrical insulation, good dielectric strength, and excellent corrosion resistance.
Applications include high-temperature insulation, furnace linings, mufflers, gas turbines, fans, ovens, chemical reactors, expansion joint packing, high-temperature filters, fire protection, sound absorption, stress relieving insulation, non-contaminating brazing, and more.

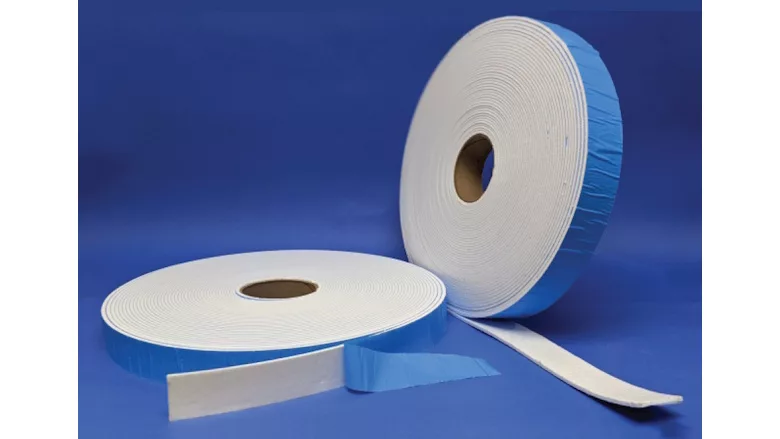

Adhesive-backed ceramic tapes are packaged in easy-to-use roll widths: 1”, 1.5”, 2” or 3” and are available in two thicknesses: 1/8” by 50 feet long and 1/4” by 62.5 feet long.
Learn more at cotronics.com.
