DYMAX: High-Speed UV/Visible Curing

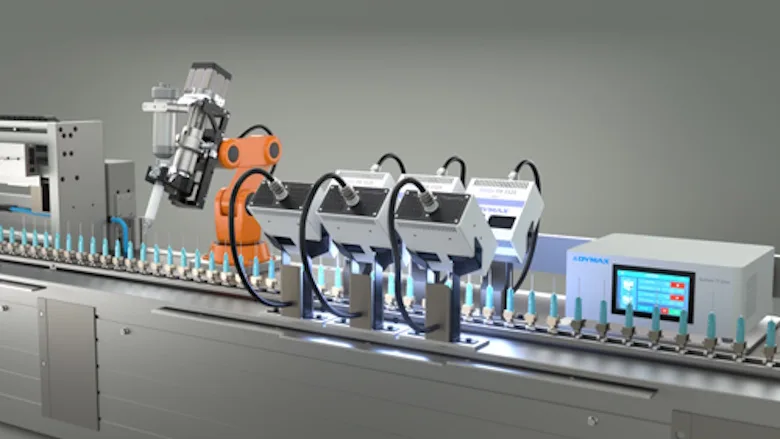

Dymax BlueWave® FX Line Emitters provide linear UV/visible curing for automated manufacturing processes.
The BlueWave® FX Line Emitter series from Dymax provides fast, uniform linear UV/visible exposure in automated production environments. Designed for high-speed manufacturing, the new emitters help teams improve process consistency and throughput by delivering a uniform, high-intensity UV/Visible curing profile along a defined line. They’re well suited for bonding, printing, and coating applications where a high dose of uniform UV/Visible exposure is critical.
Key features include:
- Up to 4.2 W/cm² intensity at a 25-mm working distance for fast curing
- 75-mm and 150-mm lengths with a 25-mm curing width to fit common line configurations
- 365 nm, 385 nm and 405 nm wavelength options to match material and process needs
The emitters are low noise, offer good uniformity, and feature global regulatory marks. Additionally, then integrated with Dymax FX-series controllers, FX Line Emitters support scalable, automated integration while providing dual-channel control, flexible wavelength configuration, and an intuitive 7-inch touchscreen interface.
The emitters support both adhesive and non-adhesive curing processes. Applications include medical device assembly (such as needle bonding and catheter tubing) as well as ink printing, lacquers, paints, and other UV-curable coatings. The systems are CE and UKCA marked to support global deployment. Learn more at dymax.com.
