The TIP-TITE^® Box Dumper from Flexicon is designed to provide dust-free transfer of bulk solid materials from boxes, Gaylords, or other rigid containers into downstream processes. A key feature is its light curtain — a non-contact safety device that replaces traditional safety lock doors. With this product, a single operator can load the dumper via fork truck without leaving the vehicle, which helps speed production cycles.

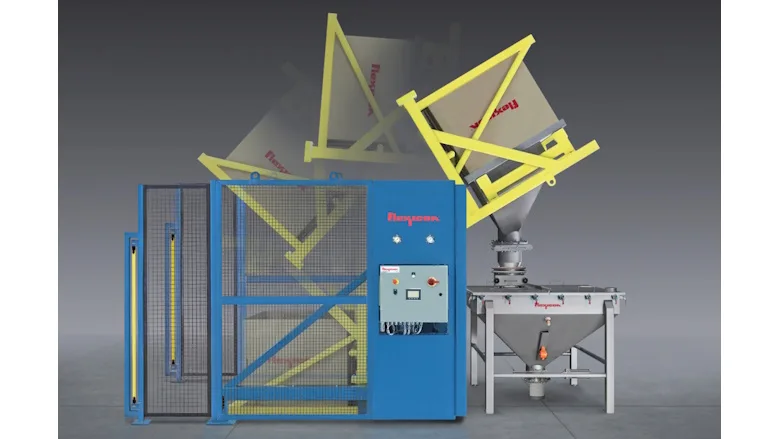

Once loaded in the dumper, the box is hydraulically raised to seat against a discharge hood. The assembly is then hydraulically elevated and tipped until the spout of the discharge hood mates with a gasketed receiving ring on the lid of the receiving bin. The light curtain automatically stops the dumper’s motion if someone enters the hazard zone. Once the hood is properly positioned, the operator activates a pneumatically actuated slide gate, enabling material to flow into downstream processing equipment.
