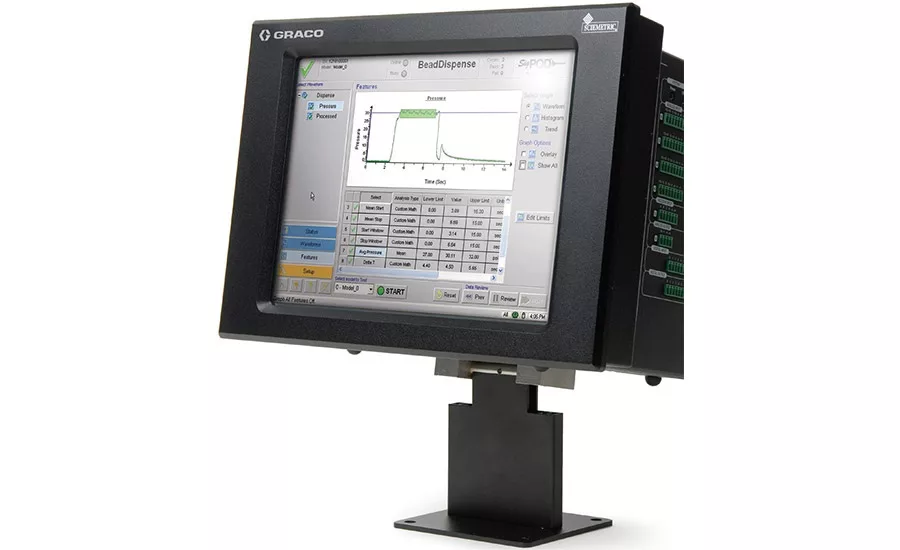

GRACO ADVANCED FLUID DISPENSE: Dispense Analyzer
The Graco dispense analyzer monitoring system is reportedly the ultimate system for detecting errors in material dispense for a variety of applications. Graco and Sciemetric have teamed up to create the analyzer, which tracks and monitors each dispense “signature” with a degree of precision higher than other approaches, including vision-reliant inspection systems.
The dispense Aanalyzer uses a variety of sensor data to define a dispense signature. The system then determines whether each dispense has been completed in accordance with the signature. If the dispense signature is outside of defined parameters, the dispense analyzer can provide actionable information to define a course of action – rework, retouch, or scrap.
The dispense analyzer can be easily configured to analyze a range of applications, and has been used for engine gaskets. It reportedly can record and analyze the signature for each dispense, and can detect defects associated with air bubbles, bead size, dispense pressure, flow rate, consistency, and temperature of dispense, as well as a variety of custom attributes. The dispense signature may be particularly useful for finding microbubbles below the surface, which cannot be found using a vision system.
Access to this high level of precise data allows users to quickly and easily find a defect’s root cause, avoid product defects, and fully understand the dynamics of their dispense application. Detecting defects never before visible, the dispense analyzer helps users to avoid expensive problems by responding sooner, and to contain potential warranty claims and recalls to only those products affected.
If a problem surfaces in the future, users can return to stored data to identify the root cause and use waveform analysis to more accurately determine how to correct it. When required for quality or regulatory purposes, end-users can quickly and easily retrieve the detailed data stored by the dispense analyzer. The system is fully compatible with the Sciemetric QualityWorX data management platform, tying traceability and process control throughout operations.
For more information, visit www.graco.com.
