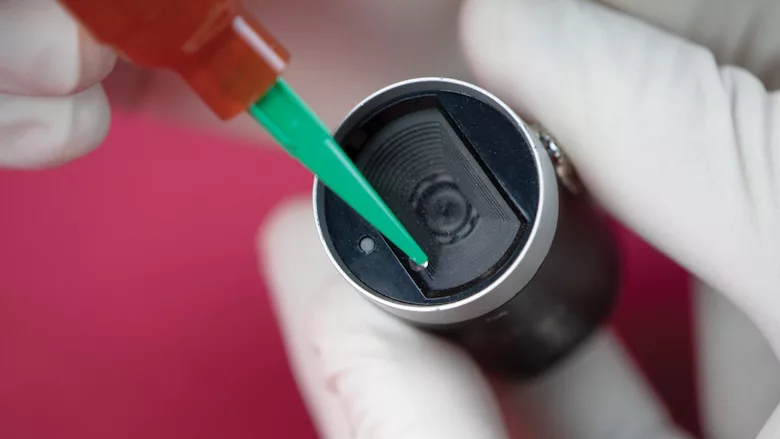

Master Bond UV26DCMed is a one-component, dual-cure adhesive system designed for medical device assembly. It is designed for reusable devices that require repeated sterilization, including steam autoclaving, ethylene oxide, and glutaraldehyde. The system also demonstrates compatibility with various hydrogen peroxide sterilization systems. The adhesive system is bio-compatible and meets ISO 10993-5 requirements for non-cytotoxicity.

UV26DCMed utilizes UV light for rapid fixturing and heat to fully polymerize shadowed-out areas. The adhesive cures upon exposure to a UV light source (320–365 nm), followed by a secondary heat cure at 110–125 °C for 60–90 minutes. To optimize performance properties and ensure maximum chemical resistance, an additional post-cure at 120–150 °C for 1–2 hours is recommended.

The adhesive system provides optical clarity and maintains a low viscosity of 500–3,500 cps at 24 °C, which facilitates easy application and flow. Its high mechanical strength is demonstrated by a tensile strength of 6,000–8,000 psi and a tensile modulus exceeding 750,000 psi. The system is serviceable over a wide temperature range from -60 °F to +500 °F (-51 °C to +260 °C) and features a high glass transition temperature (Tg) of 160–170 °C. Electrically non-conductive with a volume resistivity greater than 1014 ohm-cm, it bonds effectively to metals, glass, plastics, and ceramics. UV26DCMed is available for use in syringes, as well as ½-pint, pint, quart, and gallon containers. Its suitability for automated dispensing makes it ideal for high-speed manufacturing environments.

Learn more at masterbond.com.
