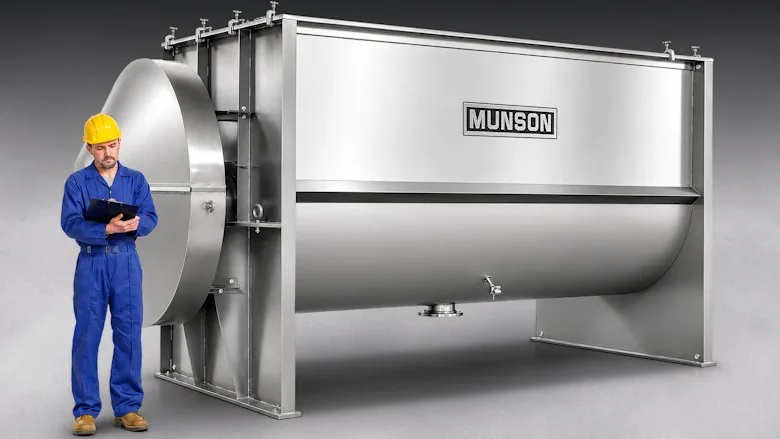

MUNSON MACHINERY CO. INC.: Ribbon Blender

Munson Machinery Co. has introduced the HD-6-1/2-15 SS Ribbon Blender, designed to blend up to 500 cu ft (14.16 m³) of bulk solids with low or high liquid content. The unit's split double-helical agitator uses inner and outer ribbons that move material in opposite directions, producing a uniform blend in as little as 5 to 10 minutes.
The blender features one-piece welded construction with heavy-gauge walls and reinforced end panels. The ribbon agitator passes within 1/16 to 1/8 in. (1.6 to 3.2 mm) of the vessel wall to reduce residual material and simplify cleaning. A hinged lid with a removable, safety-interlocked grate provides access for cleaning and inspection.
Powered by a 150 HP (111.9 kW) motor, the flange-mounted agitator can be lifted vertically for maintenance. The stainless steel blender is available in industrial, pharmaceutical, and food-grade configurations, with finish options ranging from clean mill to mirror pharmaceutical and USDA Dairy standards.
Optional features include a bag dump station, spray lines for liquid addition, choppers/intensifiers, multiple discharge configurations, heating and cooling jackets, and clean-in-place (CIP) manifolds. Additional models are available with capacities from 1 to 1,150 cu ft (28 L to 33 m³).
For more information, visit munsonmachinery.com.
