CHARLES ROSS & SON CO.: Inline Mixer

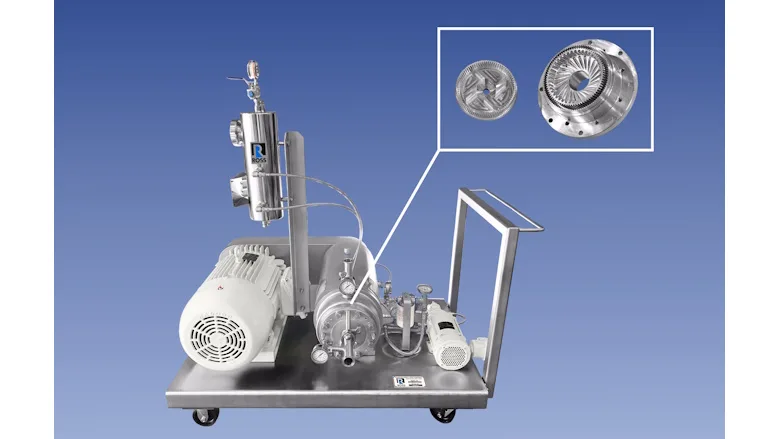

A sanitary inline mixer, the ROSS MegaShear Model HSM-706MS-50 is designed for ultra-high-shear mixing applications requiring rapid particle size reduction, emulsification, and homogenization. The mixer features a high-performance rotor/stator generator capable of operating at up to 7,200 rpm, delivering tip speeds of approximately 11,300 ft/min for efficient dispersion and uniform product consistency.
Product-contact surfaces are constructed of Type 316 stainless steel and polished to a 150-grit finish to support sanitary processing and ease of cleaning. The mixing chamber is rated for operation at up to 150 psig and 250 °F and includes a stainless-steel jacket for temperature control. Tri-clamp inlet and outlet connections allow for straightforward integration into existing process lines.
Also featured are a bearing housing with integrated cooling coils and a forced-oil lubrication system, including a pump, filter, and monitoring instrumentation, to ensure consistent performance during demanding operation. Portable on sanitary caster wheels, the mixer is mounted on a heavy-duty stainless-steel base polished to a 150-grit finish.
Learn more at mixers.com.
