CHARLES ROSS & SON CO.: Mixer

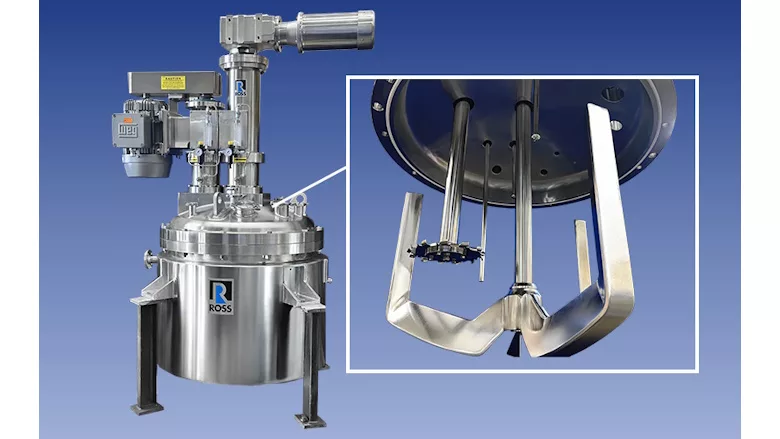

The ROSS Model VM-80 VersaMix combines a three-wing anchor agitator and high-speed disperser for mixing, blending, dispersing, heating, cooling, and vacuum processing of liquids, slurries, gels, creams, and pastes. The pictured VersaMix has an 80-gallon working capacity with an 86-gallon full holding capacity.
The vessel is fabricated with Type 316L stainless steel product-contact surfaces with <25 Ra finish, passivated, and electropolished for sanitary operation and simplified cleaning. A multi-agitator system features dry running non-contact dual gas seals and a Type 304 stainless steel heating/cooling jacket rated for 50 psig at 300°F.
The mixer features a three-wing anchor agitator powered by a 5 HP explosion-proof motor operating from 25 to 52 rpm. A skim breaker wing supplied beneath the anchor hub eliminates any dead zone, promoting material movement all throughout the mixing and discharge cycles. Complementing the anchor agitator is a high-speed disperser driven by a 15 HP explosion-proof motor. Equipped with a 9” Type 316 stainless steel sawtooth blade, the disperser operates at speeds up to 2,016 rpm, generating tip speeds up to 4,750 feet per minute. Seal gas purge systems and debris wells are provided for the air/nitrogen-purged double mechanical seals.
Learn more at mixers.com.
