PANACOL: Acrylic Adhesive

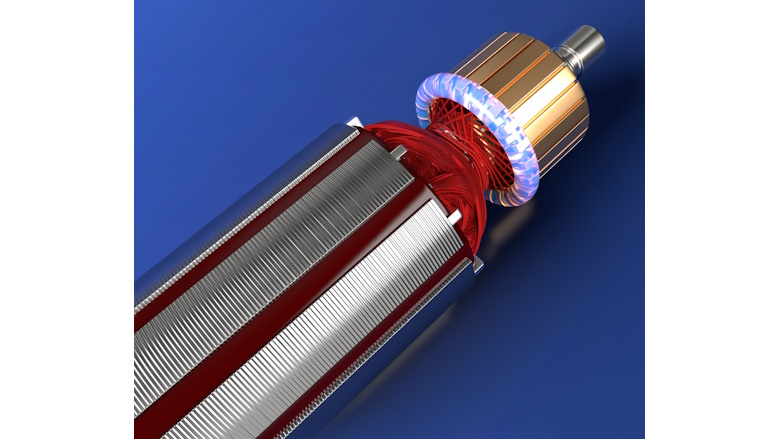

The new UV adhesive Vitralit UV E-2113 protects the wires on the commutator. Image courtesy of Panacol.
Vitralit® UV E-2113 is a new UV acrylic adhesive developed for the rapid securing of commutators. This UV adhesive can be applied robotically and cures within seconds under UV light. The process of securing commutators can be greatly accelerated with this new product.
The adhesive is a highly viscous and stable product. Its optimized flow characteristics allow it to dispense easily into cavities. It has high adhesion to all metals, adhering to the coil wires as well as to the solder joints and the commutator. The adhesive can be applied in a ring around the commutator in automated processes. Vitralit UV E-2113 is a one-component adhesive and does not require special handling during transportation, storage, and dispensing.
The acrylic adhesive cures in just a few seconds with light in the UVA range or in the visible range at a wavelength of 405 nm. Both traditional gas discharge lamps and LED systems can be used for curing. The curing of Panacol adhesives are optimized by the UV and LED UV curing systems from Dr. Hönle. For example, the Hönle high-intensity LED Powerline AC/IC HP systems will cure Vitralit UV E-2113 in seconds, enabling high-speed, high-volume automated production. Fast, in-line light curing eliminates the need for lengthy and energy-consuming oven processes. Commutator protection with Vitralit E-2113 can significantly reduce production times and costs.
After curing, the adhesive has a dry surface and is highly resistant to vibration and impact. Vitralit E-2113 creates low-stress bonds and temperature resistance in the range of -40 to 150 °C, which are typical requirements in the automotive industry.
Learn more about Panacol at www.panacol.com.
