Researchers Develop Switchable PVA Film for Wood Adhesive Applications
A study published in the Journal of Bioresources and Bioproducts reports a novel water-triggered adaptive polyvinyl alcohol-polysaccharide supramolecular film with switchable structural and adhesive functions.

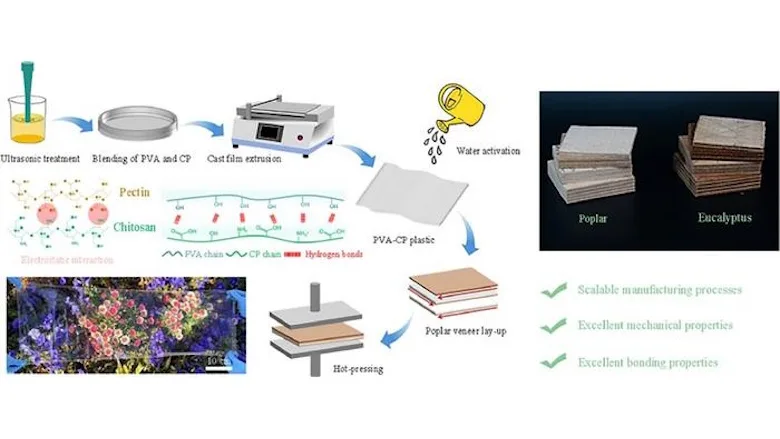

A research team at Southwest Forestry University in Kunming, China, employed ultrasonic-assisted assembly technology to create a hybrid polysaccharide polymer through electrostatic interactions between chitosan and pectin, then blended it with polyvinyl alcohol to form a supramolecular composite film. The PVA-CP (7:3) film achieved a tensile strength of 77 MPa and elongation at break of 322%, while maintaining 46 MPa after 48 hours of water immersion. After heat treatment at 200 °C, the strength increased to 125 MPa with enhanced solvent resistance.
The film demonstrated water-activated adhesive properties, achieving dry shear strengths of 5.4 MPa for poplar, 3.3 MPa for eucalyptus, and 7.7 MPa for bamboo lap joints. When used in plywood production, the material exceeded the requirements for Class II panels under Chinese standard GB/T 9846—2015, with wet strengths of 1.3–1.4 MPa after hot water immersion. Life-cycle assessment indicated lower environmental impacts across 16 indicators compared to conventional petroleum-based plastics including polyethylene, polypropylene, and PVC. The film can be physically recycled through dissolution and remolding, with regenerated material retaining approximately 60 MPa tensile strength.
Polyvinyl alcohol has been studied as a biodegradable alternative to petroleum-based plastics due to its recyclability, non-toxicity, and excellent mechanical properties. However, strong hydrophilicity causes significant degradation of mechanical properties in high-humidity environments, severely limiting practical applications. The new supramolecular strategy overcomes this limitation by introducing a locally ordered network structure that reinforces PVA crystalline domains and prevents water molecules from disrupting the polymer network. The chitosan-pectin hybrid polymer, formed through electrostatic interactions between protonated amino groups and carboxyl groups, serves as physical cross-linking points and heterogeneous nucleation sites within the PVA matrix.
Upon water activation and hot-pressing, the supramolecular network transforms into a cross-linked system incorporating both covalent ether bonds and hydrogen bonds, enabling high-performance bonding to wood substrates. The researchers demonstrated that both water activation and heat treatment are essential: neither treatment alone produced effective adhesion.
The material was successfully applied to produce multilayer plywood ranging from three to eleven layers, with seven-layer eucalyptus plywood achieving a bending strength of 61 MPa and elastic modulus of 7750 MPa. The work broadens multifunctional application prospects for eco-friendly, high-performance, and recyclable bioplastic films.
Read the entire study here.
